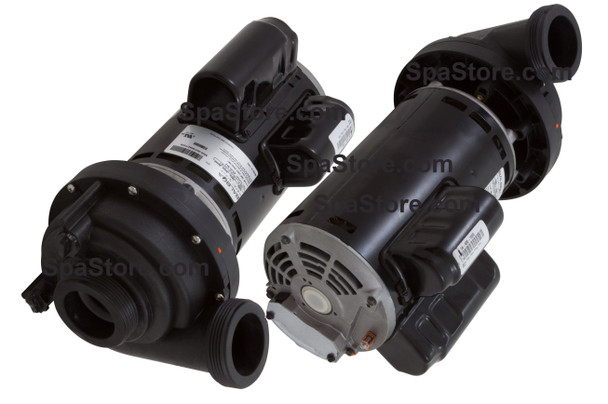

Sundance® Marin 2 Speed Spa Pump 230 Volt Replaced 7-193229-01 AO Smith Latest Version Energy Saver Pump

Sundance® Marin 2 Speed Spa Pump 230 Volt Replaced 7-193229-01 AO Smith Latest Version Energy Saver Pump
Specifications: Latest Version-Energy Saver Pump
Click here to purchase the required Pump Bracket & 2" Orings

• 11 / 3.3 Amp
• 2 Speed
• 3450 / 1725 RPM
• 2.5 HP / 4.2 Brake HP upgraded from 2.0 HP
• 230 Volt
• 48 Frame
• Union connection: The inlet and outlet inner diameter is 2".  The outer diameter is 3 1/16".
• The wet end can be rotated to desired position.
• Red Wire for High Speed, Black Wire for Low Speed, White Wire for Common, Green Wire for Ground

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket below:

Click here to purchase the required Pump Bracket & 2" Orings

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.
The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.

Current Replacement Pump for Pump #1 on the control panel
