Current Version Sundance® Spas 2003 Optima/W 2 Speed 2.5 HP Spa Pump Replaced Theramax 6500-261 Replaced AO Smith 7-193227-01 CXSM RPM 3450/1725 FR Y48Y HZ 60 Welded Base Direct Fit Drop In

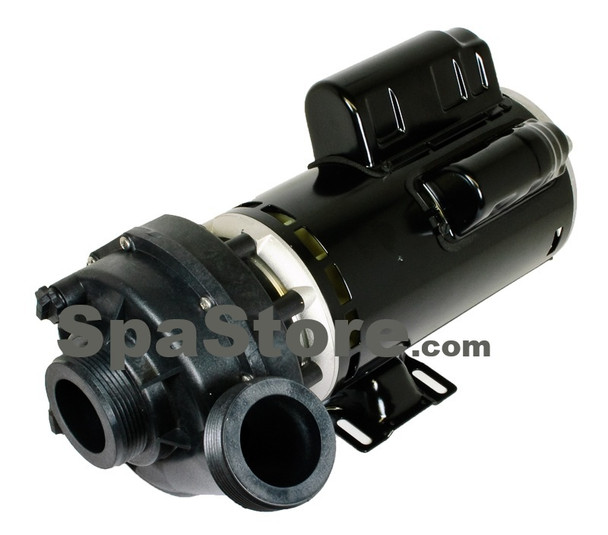

Current Version for 2003 Sundance® Spas Optima/W 2 Speed 2.5 HP Spa Pump
Replaced AO Smith Theramax 7-193227-01 CXSM RPM 3450/1725 FR Y48Y HZ 60

Specifications: Latest Version-Energy Saver Pump
Current Replacement Pump for Sundance® Spas Models: Pump #1 on the control panel
Note: This is a newer style pump and requires the use of a separately sold Pump Bracket below:

Click here to purchase required O-rings

• Union connection: The inlet and outlet inner diameter is 2".  The outer diameter is 3 1/16".
• The wet end can be rotated to desired position.
• Red Wire for High Speed, Black Wire for Low Speed, White Wire for Common, Green Wire for Ground
