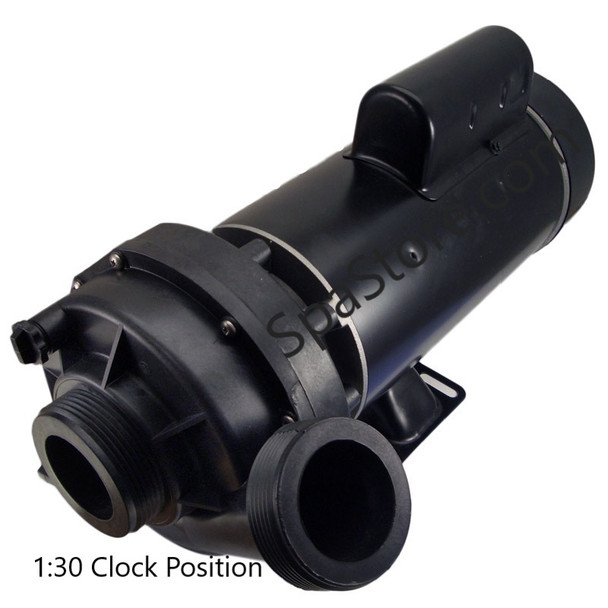

Current Version Sundance® Montego Model 1997 TheraFlo 2 Speed 2HP Spa Pump 230 Volt Replaced Emerson T55CXBZF-1149 1563 1795

Current Version Sundance® Montego Model 1997 TheraFlo 2 Speed Spa 2HP Pump 230 Volt
Replaced Emerson T55CXBZF-1149  1563 1795

Click here to purchase the required Pump Bracket & 2" Orings

Specifications: Latest Version-Energy Saver Pump

• 2 Speed
• 2HP
• 3450 / 1725 RPM
• 230 Volt
• Union connection: The inlet and outlet inner diameter is 2".  The outer diameter is 3 1/16".
• The wet end can be rotated to desired position.
• Red Wire for High Speed, Black Wire for Low Speed, White Wire for Common, Green Wire for Ground

If you need help matching up your old pump, send photos to help@spastore.com
Be sure to include photos all stickers on the pump and hot tub model & year if known.

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket below:

Click here to purchase the required Pump Bracket & 2" Orings

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.
The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.

Current Replacement Pump for Sundance® Spas & Sweetwater Models: Pump #1 on the control panel
