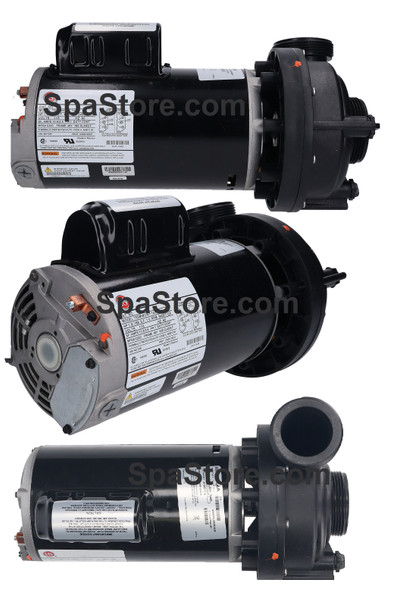

2.0 HP Sundance® Spas 1 Speed Hot Tub Spa Pump Baseless 230 Volt 2" Plumbing Latest Version Replaced Emerson T55MWBLR-968 CAT 7831

2.0 HP Sundance® Spas 1 Speed Hot Tub Spa Pump Baseless 230 Volt 2" Plumbing Latest Version
Replaced Emerson T55MWBLR-968 CAT 7831

Click here to purchase the required Pump Bracket & Orings

• 1 Speed
• 10 Amps
• 230 Volt
• 3450 RPM
• Inlet and outlet diameter is 2"
• Outer thread diameter is 3 1/16"
• CURRENT VERSION Dimensions: 17-1/2"L x 8-7/16"W x 8-7/16"H

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.
The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket & Orings below:

• Green=Ground
• White=Common
• Black=High Speed
